RapiLock Axle comes with six different threads that can pair up with ten different specifications covering at least 80% of the market for road disc front wheels.
The axle is designed with an integrated lever. When the lever is not needed to install the axle, it is completely hidden in the axle body. In this position, the appearance of the bike will be concise and it will also increase the reliability of the locking system by avoiding impact with the lever.
Weight for Reference:
M12xP1.5x160mm Thread Length 13mm=55g

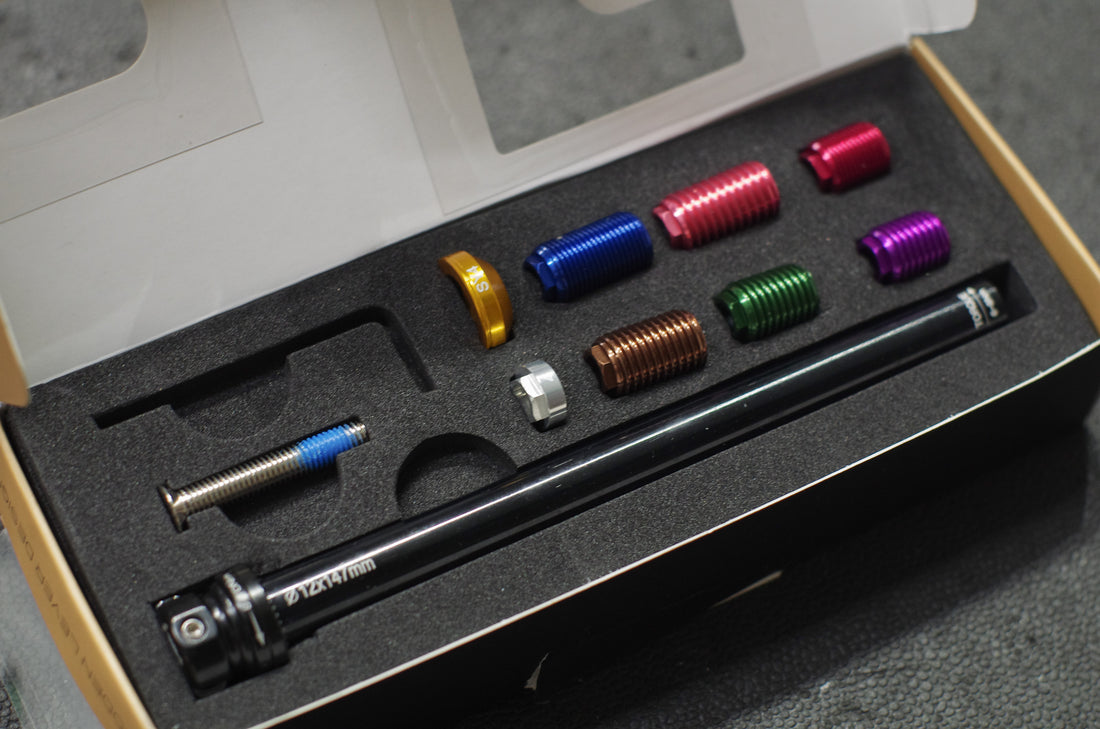

Aluminum 7075 Axle Length Ø12x105mm x1 piece (Front) or Aluminum 7075 Axle Length Ø12x147mm x1 piece (Rear)
Aluminum 7075 Thread x6 pieces
-Blue: M12*P1.0 Thread Length 20mm
-Red: M12*P1.0 Thread Length 13mm
-Brown: M12*P1.5 Thread Length 18mm
-Green: M12*P1.5 Thread Length 15mm
-Purple: M12*P1.5 Thread Length 13mm
-Pink: M12*P1.75 Thread Length 20mm
Skewer x1 piece
Spacer x1 piece
Cone x1 piece
allen wrench x1 piece
